Online Electrical Conductivity Sensor Chlorine Electrode Do Meter Probe PEEK

Brand Name : Desun Uniwill

Model Number : DSC480

Place of Origin : China

MOQ : 1

Price : Determined by the number of specific orders

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000

Packaging Details : Carton packaging

Name : Conductivity Sensor

Measuring range : 1uS/cm-300mS/cm

Temperature Range : 0-50℃

Accuracy : ±2%

Power Supply : DC 6~12V, current <50mA

Housing Material : Stainless steel

Principle : Four-electrode/six-electrode technology

Response Time : <2 sec

Installation : Input water

Protection level : IP68

Contact Now

Online Digital Water Conductivity Ph Ec Do Salinity Turbidity Chlorine Sensor Electrode Meter

Product Description

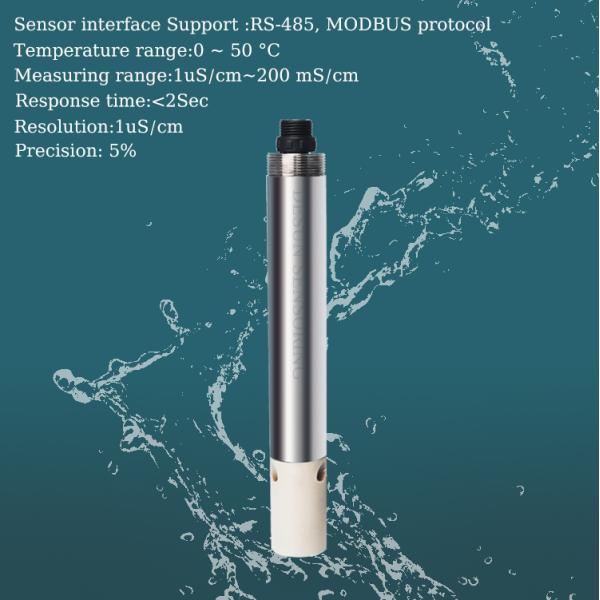

Online Conductivity Sensor
Digital conductivity sensor adopts a new generation of four-electrode/six-electrode technology, with wide measurement range, automatic switching measurement range, built-in temperature sensor and real-time temperature compensation. It has excellent anti-pollution ability and will not cause polarization even in the harsh environment for long-term online monitoring. RS485 output, can be networked without a controller.
* Digital sensor, RS485 output, support Modbus
* Wide measurement range, automatic switching measurement range
* Built-in temperature sensor, real-time temperature compensation
* Four-electrode/six-electrode technology, no polarization
In order to obtain continuous and stable measurement results, regular maintenance is required. Maintenance and maintenance mainly include cleaning of the sensor, checking whether the sensor is damaged, etc. Check the relative status of the sensor during maintenance and inspection to reduce the failure rate and increase the service life.
Range
1uS/cm~300 mS/cm
Conductivity Accuracy
3%
Resolution
1uS/cm
Response time
＜2 sec
Protection level
IP68
Max operating pressure
6 bar
Temperature range
0~ 50°C
Sensor interface
Support RS-485, MODBUS protocol
Assembly
Input type
Power information
DC 6~12V, current ＜50mA
Temperature Sensor
NTC
Electrode material
Nickel
Jacket material
PEEK
Sensor Size
Φ 22 *140 mm
Probe cable length
5 meters (default), can be customized
Calibration
1 or 2 point calibration

Online Electrical Conductivity Sensor Chlorine Electrode Do Meter Probe PEEK

Packing & Delivery
Package
Safe export carton
Delivery time
5-9 days on the way
FAQ
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring sensors.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the
certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment ?
A: We could accept T/T, Paypal, Western Union, Credit Assurance.
Q: How about warranty?
A: 12 months warranty
